Cybersecurity Lab Part 1: Build the Foundation

Tip: If you have limited RAM (16GB), skip the full SIEM for now and just run the UTM and Kali, or use a lighter SIEM alternative like a simple ELK container, though Security Onion is the gold standard for learning.

Lab overview#

This stack focuses on four layers: virtualization, UTM, SIEM, and a pentest OS.

The 4-Layer Stack#

Network Flow#

1) Virtualization platform#

Common options most learners can access:

Recommendation: Proxmox for the best balance of features and cost.

2) UTM (router/firewall)#

Two strong choices:

Recommendation: choose OPNsense or pfSense based on your UI preference and available plugins.

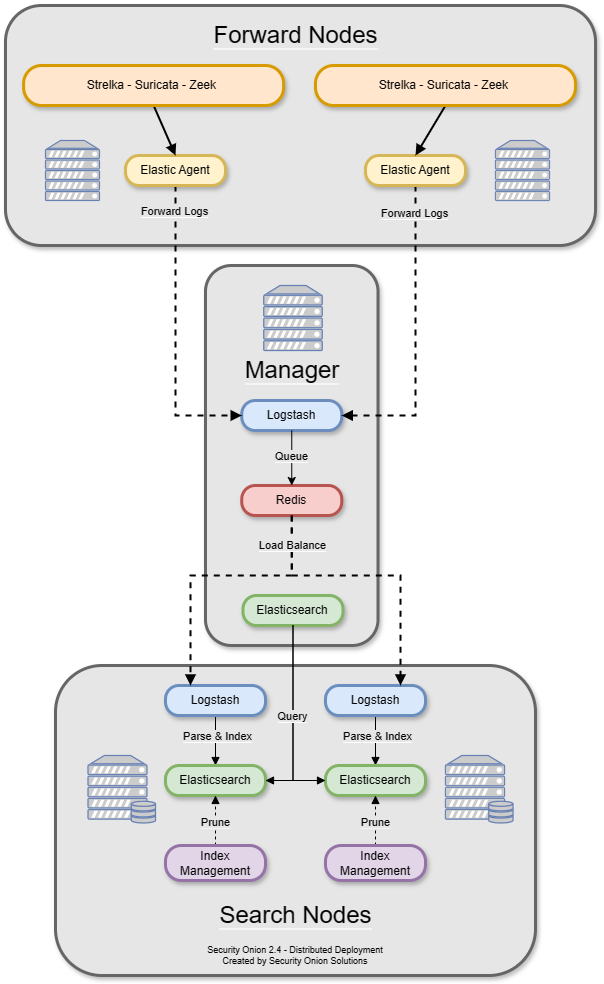

3) SIEM platform#

Security Onion and T-Pot are both ELK-based and support advanced detection workflows.

Security Onion is a proven platform used commercially and in competitions, so it is a safe default for learning detection and response.

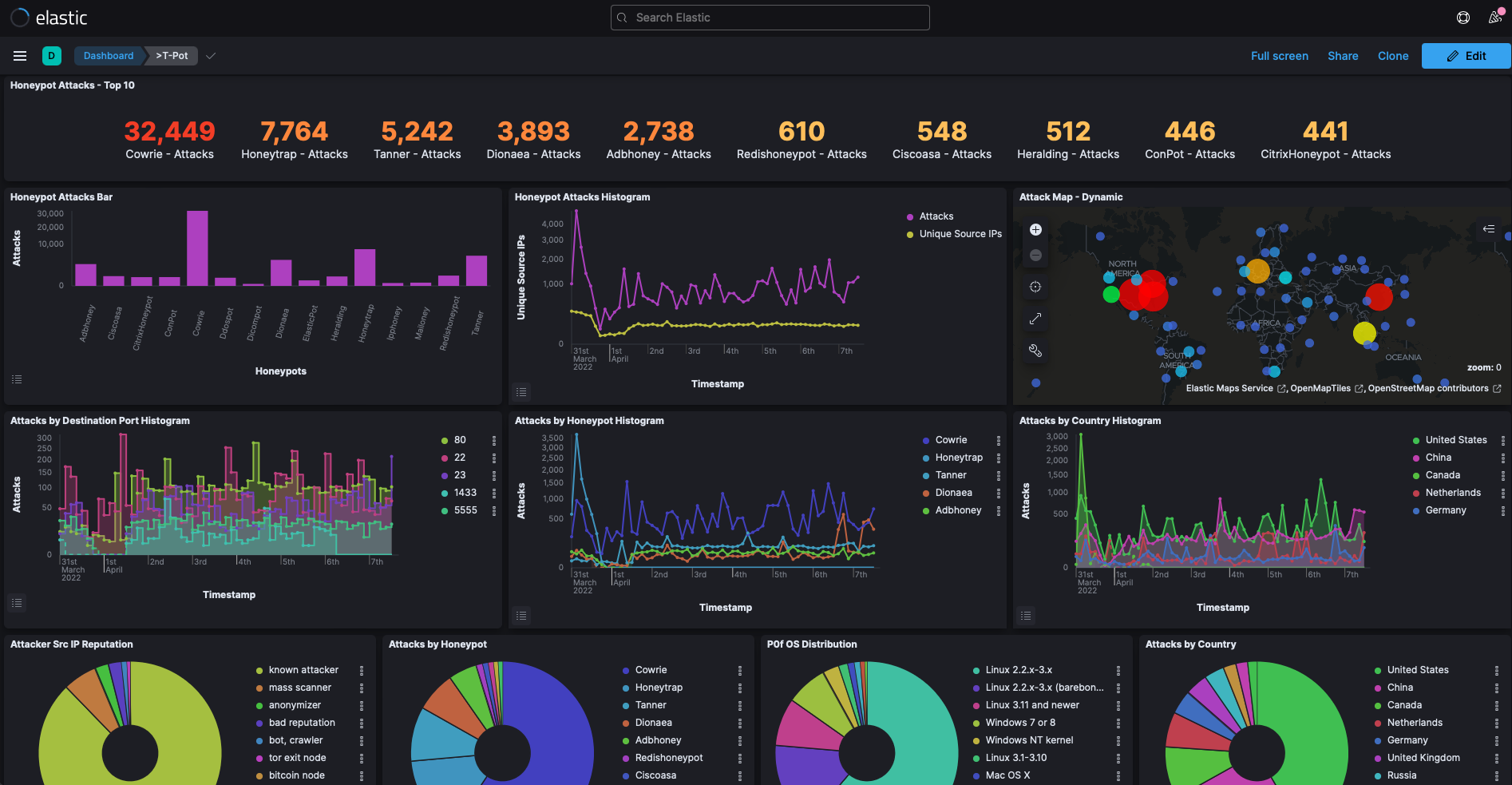

T-Pot is built around honeypots and attack telemetry. It is excellent for observing real-world behavior but should be isolated on a dedicated segment to reduce risk.

Practical SIEM lab workflow (Security Onion or T-Pot)#

ISO-based installs make these platforms feel like full operating systems, but the biggest advantage is the pre-integrated pipeline: Suricata and Zeek feed structured telemetry into Elasticsearch, and Kibana provides immediate visibility. This lets you spend lab time on detection logic and analysis instead of plumbing.

Deployment guidance:

• Install Security Onion or T-Pot on a dedicated VM with sufficient disk.
• Configure a SPAN/port mirror on your virtual switch to copy traffic into the sensor VM.
• Verify the sensor NIC is in promiscuous mode and packet counters increase.
• Generate traffic from attacker/target VMs and confirm logs in Kibana.

Validation checks:

• Suricata alerts and Zeek logs appear in the SIEM UI within minutes.
• Dashboards show src/dst IPs, ports, and protocol breakdowns.
• A simple scan (for example, a TCP SYN scan) triggers an alert or notable.

Scenario mini-recipes (quick)

• Brute-force simulation against a test SSH service (detects auth noise).

• DNS tunneling indicators (high-entropy subdomains).

KQL quick queries (starter)

Common pitfalls:

• No data in dashboards usually means SPAN configuration or vSwitch binding is wrong.
• High CPU or disk usage often indicates excessive capture volume or long retention.
• Time drift across VMs causes confusing timelines; keep NTP consistent.

LLM-assisted scenario design:

• LLM agents (Codex, Claude, Gemini) can draft structured attacker playbooks and expected detections.
• A local LLM via Ollama keeps traffic and scenario data on-box when you need privacy.

Field notes: why this workflow works in practice#

The fastest way to build real-world instincts in a homelab is to run a proven SIEM stack end-to-end. When I prepared for security work in the military (pre GPT-1 era), Security Onion and T-Pot were my go-to platforms because they boot from ISO like a full OS and deliver a complete SIEM stack out of the box. That all-in-one setup is exactly why these tools show up in small teams and larger competition labs.

Important context: this lab prep was done before military service, on personal hardware, and used different gear than any production or vendor environment. It helped me understand operational workflows, but it does not reflect real-world systems, and nothing here originates from vendor internals.

The shared advantage is a ready-to-use practice environment. Elasticsearch, Kibana, Suricata, Zeek, and related components arrive pre-wired, so you can skip the glue work and focus on the detection and analysis loop. In a homelab, reproducing and observing traffic is the accelerant: it makes learning far more efficient than static docs or isolated single-tool practice.

To get full value, you need mirrored traffic. Build SPAN/port-mirror plumbing in your hypervisor so packets from multiple VMs are copied into the sensor VM. Proxmox or ESXi makes this straightforward, and the difference is immediate: scenario testing against realistic traffic yields much stronger outcomes than synthetic log injection alone.

Back then, scenario design was manual. Today, LLM agents such as Codex, Claude, and Gemini can generate structured test plans and attacker playbooks. If you want local, higher-intensity testing without shipping data off-box, a local LLM like Ollama can drive repeatable, aggressive scenario runs.

The net: Security Onion and T-Pot provide the fastest path to a usable SIEM practice lab, and that speed compounds when you layer in traffic mirroring and modern scenario automation.

4) Pentest OS#

Recommendation: Kali for breadth and documentation.

Suggested baseline (recommended)#

• Virtualization: Proxmox
• UTM: OPNsense or pfSense
• SIEM: Security Onion
• Pentest OS: Kali

Verification#

• Each VM boots and can reach the UTM network.
• The SIEM ingests logs from at least one test system.

Troubleshooting#

• VM performance is slow: reduce cores per VM and enable hardware virtualization.
• Tool conflicts: isolate services into separate VMs.

Wrap-up#

• A focused stack keeps your lab stable and aligned with learning goals.
• Next: design the network layout and segmentation for safe practice.
